An n-Channel Analog/Digital Multiplexer/Demultiplexer is a device that can select one of several input signals (either analog or digital) and forward it to a single output line, or take a single input signal and distribute it to multiple output lines. The “n” refers to the number of channels or inputs that the device can handle, allowing for efficient signal management in electronic circuits.
The CD74HC4067 is a 16-channel multiplexer/demultiplexer, while the 74HC4051 is an 8-channel multiplexer/demultiplexer. Both can be used to control multiple signals with fewer pins, but the CD74HC4067 offers more channels for larger projects.
CD74HC4067 and 74HC4051
Both the CD74HC4067 and 74HC4051 are multiplexer/demultiplexer integrated circuits (ICs) used to manage multiple signals with fewer pins. However, they differ in the number of channels they support and their applications.
Key Specifications
| Feature | CD74HC4067 | 74HC4051 |
|---|---|---|
| Number of Channels | 16 | 8 |
| Control Pins | 4 | 3 |
| Supply Voltage (VCC) | 3V to 15V | 2V to 6V |
| On-Resistance | ~70Ω at 5V | ~70Ω at 5V |
| Bidirectional | Yes | Yes |
Applications

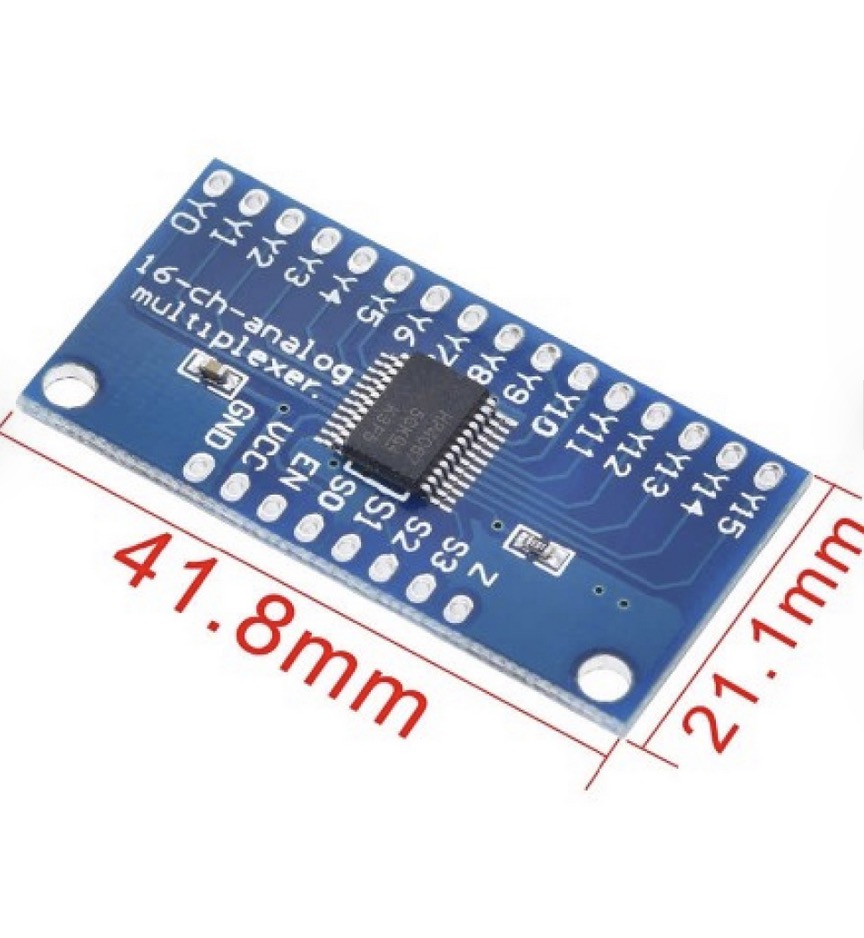

- CD74HC4067: Ideal for larger projects requiring more channels, such as reading multiple sensors or controlling multiple outputs. It can handle 16 signals using just 4 digital pins.

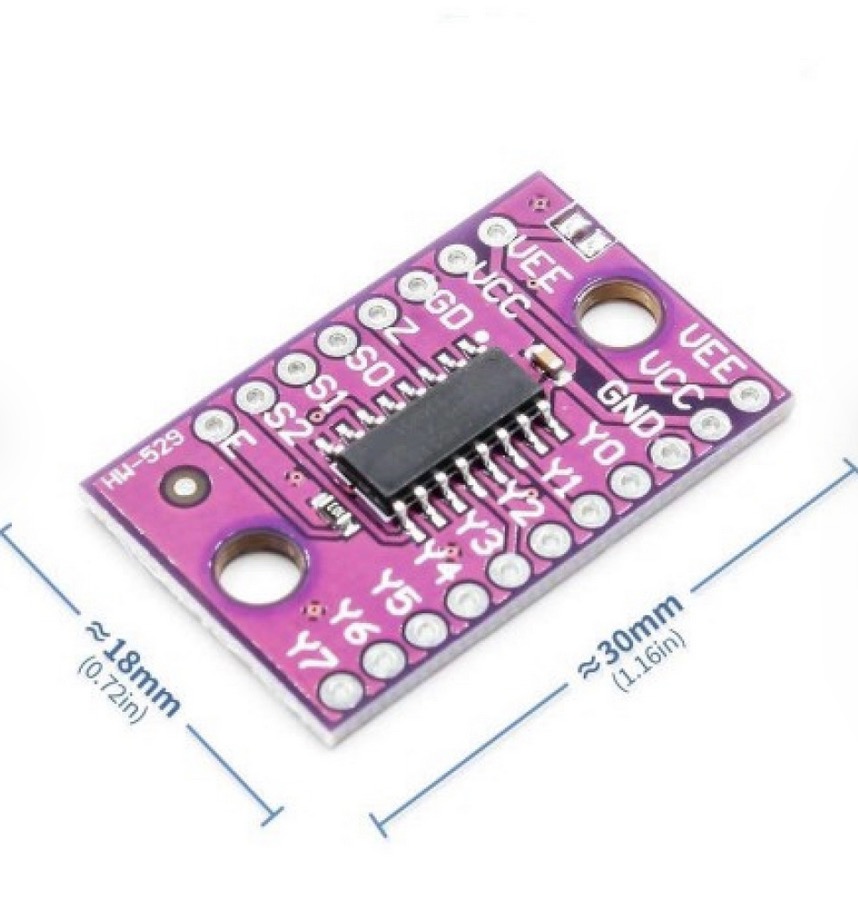

- 74HC4051: Suitable for smaller projects where fewer channels are needed. It allows control of 8 signals with only 3 digital pins, making it a cost-effective choice for simpler applications.
The choice between the CD74HC4067 and 74HC4051 depends on the specific needs of your project. If you require more channels, the CD74HC4067 is the better option, while the 74HC4051 is perfect for simpler tasks with fewer signals.
